Constant temperature & humidity machine- Constant temperature and humidity machine-杭州东玛电气有限公司

Constant temperature & humidity machine 首页>: 基本信息型号参数产品详情功能特点工艺特色应用说明

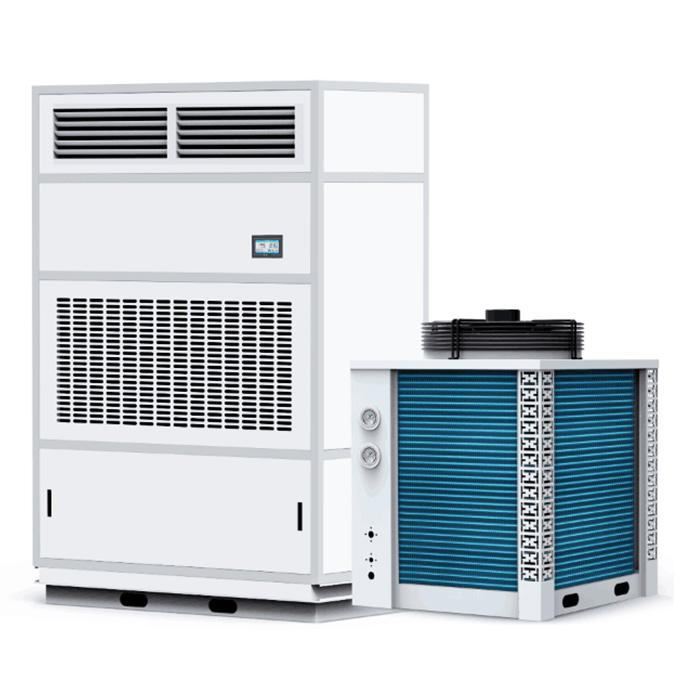

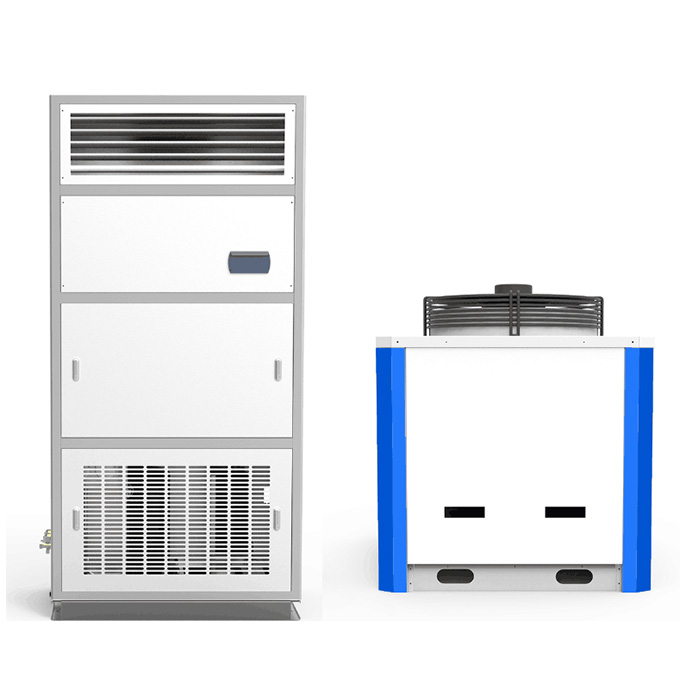

Constant temperature & humidity machine

Constant temperature & humidity machine Widely used in valuables warehouse, pharmaceutical, food, electronics, leather, footwear, furniture, printing products, chemical, tobacco and many other industries

型号参数：

型号：DXHF-5Q 型号：DXHF-7Q 型号：DXHF-9Q 型号：DXHF-19Q 型号：DXHF-26Q 型号：DXHF-31Q 型号：DXHF-42Q 型号：DXHF-56Q 型号：DXHF-64Q 型号：DXHF-84Q 型号：DXHF-95Q

除湿量：2kg/h－30kg/h（+）

适用面积：20－350m²

全国免费服务热线：13732203856

在线咨询

型号参数

Parameter name
Nominal cooling capacity (kw)
Heating(kw)
Circulating air volume(m³/h)
External static pressure(Pa)
Unit noise(dB)
Electrical source
Power input(kw)
Compressor form
Compressor power(kw)
Compressor filling capacity
Compressor refrigerant
Throttling way
Evaporator form
Condenser form
Air filter
Heater type
Humidifier form
Humidifier power(kw)
Humidifier humidification capacity(kg/h)
Inlet pipe diameter of humidifier
Humidifier drain pipe diameter
Internal fan form
Internal fan power(kw)
External fan form
External fan power(kw)
Return wind mode
Indoor machine size length（mm）
Indoor machine size width（mm）
Height of indoor machine size（mm）
Indoor machine weight
Outdoor size length（mm）
Width of outdoor unit（mm）
Height of outdoor unit size （mm）
Outdoor weight and quantity
Internal and external machine connection pipes (number of liquid pipes *)
Internal and external machine connection pipes (number of air pipes *)
Recommended area

DXHF-5Q
5
3.5
－
150
62
3N~50Hz AC380/220v
7.5
Rotary
2.15
2kg
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
1.5
2
DN25
DN25
Low noise external rotor centrifugal fan
0.15
Low noise axial fan
0.8
Forward supply and return air
800
530
1800
180kg
920
370
720
100kg*1
Φ6
Φ12
20m²

DXHF-7Q
8.2
5
－
150
62
3N~50Hz AC380/220v
11.3
Fully enclosed vortex
2.7
4.3kg
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
3
4
DN25
DN25
Low noise external rotor centrifugal fan
0.15
Low noise axial fan
0.8
Forward supply and return air
900
580
1950
190kg
735
635
795
80kg*1
Φ12
Φ19
35m²

DXHF-9Q
11.9
6
－
150
62
3N~50Hz AC380/220v
13.8
Fully enclosed vortex
3.9
4.5kg
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
3
4
DN25
DN25
Low noise external rotor centrifugal fan
0.3
Low noise axial fan
0.8
Forward supply and return air
960
580
1950
240kg
735
635
795
120kg*1
Φ12
Φ19
50m²

DXHF-19Q
20
9
－
150
62
3N~50Hz AC380/220v
20
Fully enclosed vortex
6
4kg*2
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
3
4
DN25
DN25
Low noise external rotor centrifugal fan
1.1
Low noise axial fan
1
Return air before supply
1220
740
2250
350kg
785
785
1050
180kg*1
Φ12*2
Φ19*2
80m²

DXHF-26Q
26.5
12
－
180
65
3N~50Hz AC380/220v
26
Fully enclosed vortex
7.6
4.5kg*2
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
6
8
DN25
DN25
Low noise external rotor centrifugal fan
2.2
Low noise axial fan
1.1
Return air before supply
1300
740
2250
350kg
855
820
1050
210kg*1
Φ12*2
Φ19*2
110m²

Parameter name
Nominal cooling capacity (kw)
Heating(kw)
Circulating air volume(m³/h)
External static pressure(Pa)
Unit noise(dB)
Electrical source
Power input(kw)
Compressor form
Compressor power(kw)
Compressor filling capacity
Compressor refrigerant
Throttling way
Evaporator form
Condenser form
Air filter
Heater type
Humidifier form
Humidifier power(kw)
Humidifier humidification capacity(kg/h)
Inlet pipe diameter of humidifier
Humidifier drain pipe diameter
Internal fan form
Internal fan power(kw)
External fan form
External fan power(kw)
Return wind mode
Indoor machine size length（mm）
Indoor machine size width（mm）
Height of indoor machine size（mm）
Indoor machine weight
Outdoor size length（mm）
Width of outdoor unit（mm）
Height of outdoor unit size （mm）
Outdoor weight and quantity
Internal and external machine connection pipes (number of liquid pipes *)
Internal and external machine connection pipes (number of air pipes *)
Recommended area

DXHF-31Q
31
15
－
250
69
3N~50Hz AC380/220v
28.5
Fully enclosed vortex
9
4.7kg*2
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
6
8
DN25
DN25
Low noise external rotor centrifugal fan
2.2
Low noise axial fan
1.5
Return air before supply
1420
740
2250
400kg
885
850
1150
190kg*1
Φ12*2
Φ19*2
130m²

DXHF-42Q
40.3
24
－
180
68
3N~50Hz AC380/220v
50.85
Fully enclosed vortex
7.1*2
7kg*2
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
9.75
13
DN25
DN50
Low noise external rotor centrifugal fan
1*2
Low noise axial fan
0.45*2
Duct supply duct return air
1680
750
1900
435kg
1892
1052
1160
380kg*1
Φ16*2
Φ28*2
150m²

DXHF-56Q
55.2
27
－
180
68
3N~50Hz AC380/220v
58.65
Fully enclosed vortex
8.6*2
8kg*2
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
9.75
13
DN25
DN50
Low noise external rotor centrifugal fan
3
Low noise axial fan
0.85*2
Duct supply duct return air
2710
1500
1760
683kg
1892
1052
1160
480kg*1
Φ16*2
Φ28*2
210m²

DXHF-64Q
62.2
32
－
200
68
3N~50Hz AC380/220v
69.8
Fully enclosed vortex
10.35*2
9kg*2
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
11.4
15
DN25
DN50
Low noise external rotor centrifugal fan
3.5
Low noise axial fan
1.1*2
Duct supply duct return air
2710
1500
1760
695kg
1892
1052
1160
540kg*1
Φ16*2
Φ28*2
240m²

DXHF-84Q
80.3
36
－
250
72
3N~50Hz AC380/220v
86.5
Fully enclosed vortex
8.6*3
8kg*3
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
17.5
23
DN25
DN50
Low noise external rotor centrifugal fan
4
Low noise axial fan
0.9*3
Duct supply duct return air
2710
1500
1860
865kg
1050
946
1010
260kg*3
Φ16*3
Φ28*3
310m²

Parameter name
Nominal cooling capacity (kw)
Heating(kw)
Circulating air volume(m³/h)
External static pressure(Pa)
Unit noise(dB)
Electrical source
Power input(kw)
Compressor form
Compressor power(kw)
Compressor filling capacity
Compressor refrigerant
Throttling way
Evaporator form
Condenser form
Air filter
Heater type
Humidifier form
Humidifier power(kw)
Humidifier humidification capacity(kg/h)
Inlet pipe diameter of humidifier
Humidifier drain pipe diameter
Internal fan form
Internal fan power(kw)
External fan form
External fan power(kw)
Return wind mode
Indoor machine size length（mm）
Indoor machine size width（mm）
Height of indoor machine size（mm）
Indoor machine weight
Outdoor size length（mm）
Width of outdoor unit（mm）
Height of outdoor unit size （mm）
Outdoor weight and quantity
Internal and external machine connection pipes (number of liquid pipes *)
Internal and external machine connection pipes (number of air pipes *)
Recommended area

DXHF-95Q
105
50
－
300
72
3N~50Hz AC380/220v
97.8
Fully enclosed vortex
10.35*3
9kg*3
R22
Thermal expansion valve
Copper tube cover hydrophilic aluminum fin type
Copper tube with foil foil fin type
Plate primary filter
PTCceramic heating plate
Electrode type
22
30
DN25
DN50
Low noise external rotor centrifugal fan
5.5
Low noise axial fan
1.1*3
Duct supply duct return air
4000
1800
1900
900kg
1050
946
1010
260kg*3
Φ16*3
Φ28*3
350m²

产品详情

功能特点

* four modes of temperature drop, temperature rise, dehumidification and humidification can meet the demand of constant temperature and humidity

* stable performance, high control accuracy

* personalized structure, convenient for daily maintenance

* high pressure, low pressure, overload, exhaust pipe high temperature protection Sensor fault protection, centrifugal fan overload protection

工艺特色

1, the use of international brand fully closed scroll compressor, stable performance, high efficiency

2. Rotary door structure is safer and easier to debug and maintain

应用说明

Widely used in valuables warehouse, pharmaceutical, food, electronics, leather, footwear, furniture, printing products, chemical, tobacco and many other industries
